Oscillations

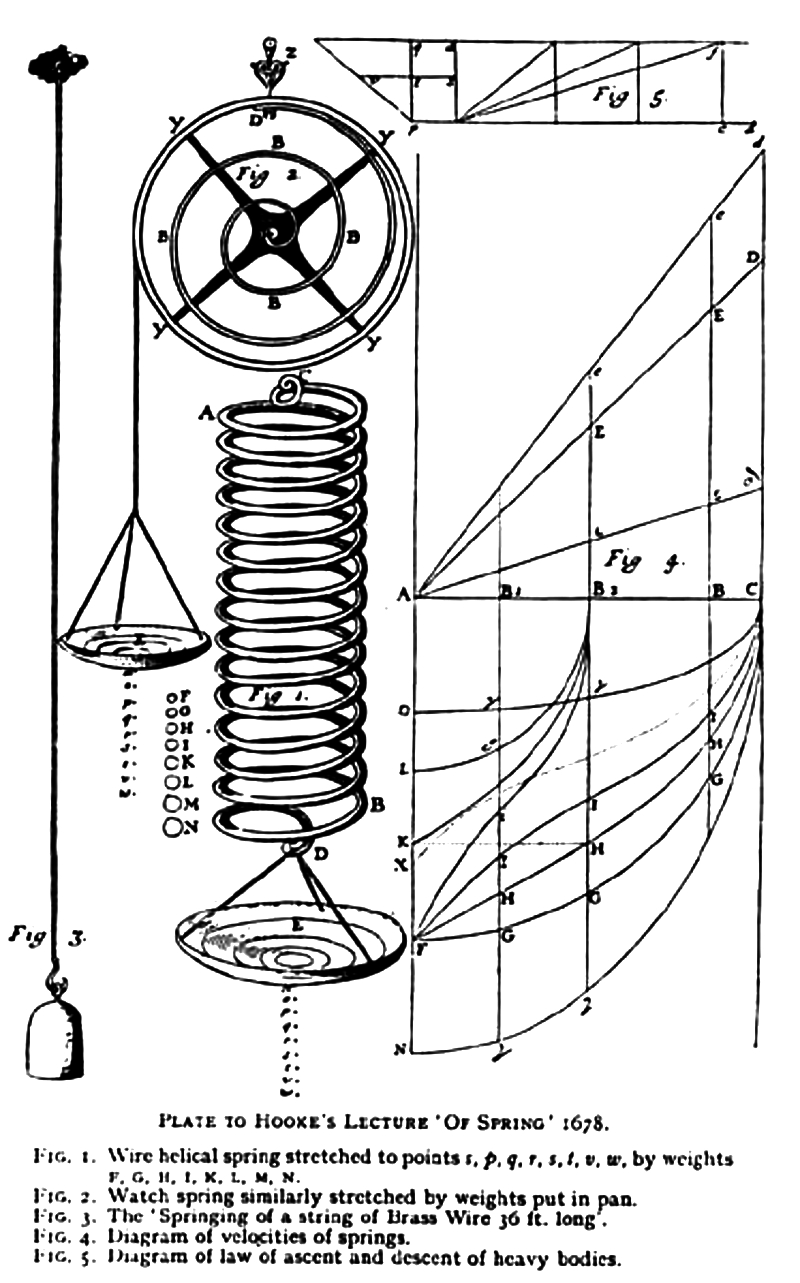

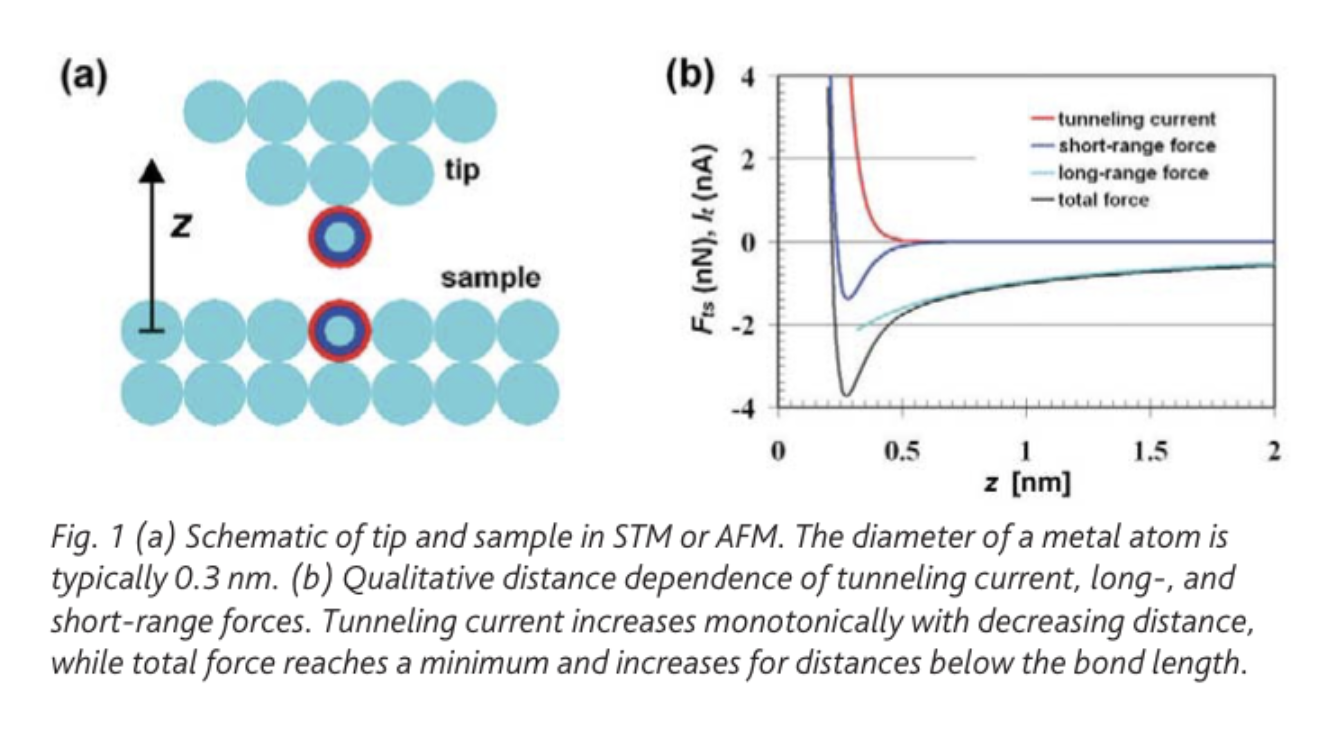

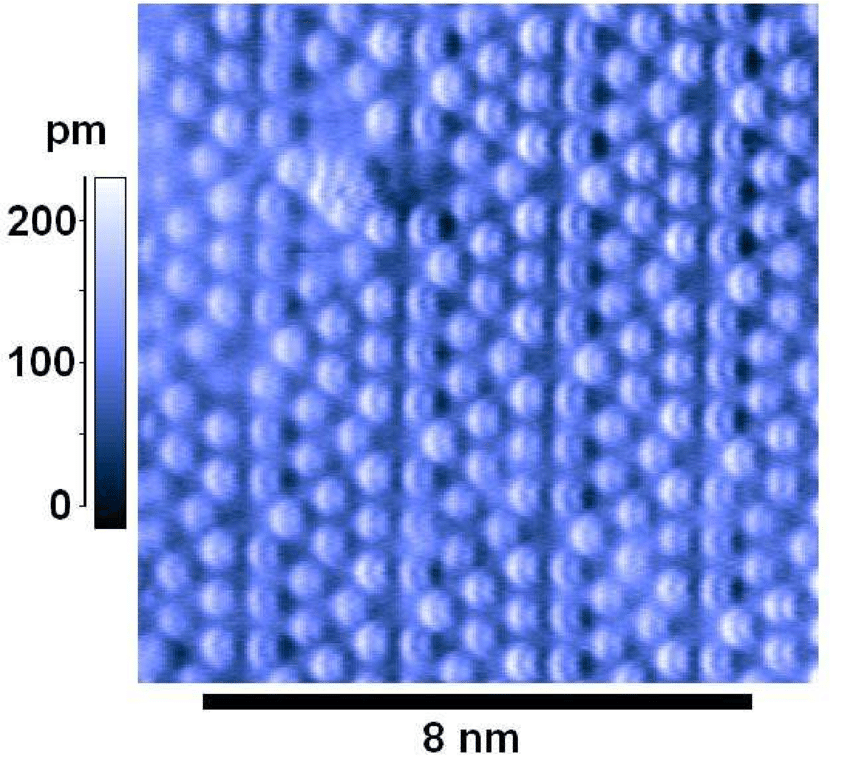

Restoring Forces

\begin{equation} \Sigma F = - kx = m \ddot x \label{eq:hookeslawsumsofforces} \end{equation}

The general solution for a linear restoring force: \begin{equation} x(t) = A \cos \left(\omega t \right) + B \sin \left( \omega t \right) \end{equation} or, if we use the phase constant: $\phi$ \begin{equation} x(t) = C \cos \left(\omega t + \phi \right) \end{equation}

Detailed Solution of Hooke's Law

We'd like to actually solve the diff eq, rather than just 'guessing' at a solution. Here is one method:

Start with the Sums of Forces equation: \begin{equation} m \frac{dv}{dt} = - k x \label{eq:hookeslaw} \end{equation}

This can be modified by noting that \begin{equation} \frac{dv}{dt} = \frac{dv}{dx}\frac{dx}{dt} = v \frac{dv}{dx} \end{equation} and so we can write: \begin{equation} m v \frac{dv}{dx} = - kx \end{equation}

Now we can use the regular separation of variables technique and integrate the results: \begin{equation} m \int_{v_0}^{v(x)} v \; dv = - k \int_{x_0}^x x dx \end{equation}

which will lead to something that should trigger some memories: \begin{equation} \frac{1}{2} m v^2 - \frac{1}{2}m v_0^2 = -\frac{1}{2}k x^2 + \frac{1}{2}k x_0^2 \end{equation}

Solving for $v$: \begin{equation} v(x) = \sqrt{\frac{k}{m} \left(x_0^2 - x^2 + \frac{v_0^2}{\frac{k}{m}} \right)} \end{equation} or, if we define some of the constants: \begin{equation} v(x) = \omega \left(A^2 - x^2 \right)^{1/2} \end{equation} with $$A = \left(x_0^2 + \frac{v_0^2}{\omega^2} \right)^{1/2}$$ and $$\omega = \sqrt{\frac{k}{m}}$$

We now have $v(x)$, but, we'd really like $v(t)$, so we have to solve: \begin{equation} v = \frac{dx}{dt} = \omega \left(A^2 - x^2 \right)^{1/2} \end{equation} Separating the variables: \begin{equation} \int_{x_0}^{x(t)} \frac{dx}{\left(A^2 - x^2 \right)^{1/2}} = \pm \omega \int_0^t dt \end{equation} Performing the integral: $$\cos^{-1} \left(\frac{x}{A} \right) - \cos^{-1} \left(\frac{x_0}{A} \right) = \mp \omega t$$

Solving for $x(t)$ \begin{equation} x(t) = A \cos \left(\omega t + \phi \right) \label{eq:positionSHO} \end{equation} where $$\phi = \mp \cos^{-1} \left(\frac{x_0}{A} \right)$$ And since $v = \dot{x}$, \begin{equation} v(t) = -\omega A \sin \left(\omega t + \phi \right) \label{eq:velocitySHO} \end{equation} where $$\phi = - \tan^{-1} \left(\frac{v_0}{\omega x_0} \right)$$ Equations \eqref{eq:positionSHO} and \eqref{eq:velocitySHO} have now been shown to be the solutions to Hooke's law.

Another route:

Rewriting Hooke's Law as \begin{equation} \frac{d^2 x}{dt^2} + \omega^2 x = 0 \end{equation} we could attempt to solve it by assuming that the solution must take the form: $$x(t) = e^{qt}$$, and then do some work to figure out what $q$ is. (we'll save that...)

Analogous systems

Simple Pendulum

The free body diagram of a simple pendulum

For small angles, the tangential force on the pendulum bob will be given by: $$F_\textrm{tang} = -mg \sin \theta$$

When $\theta$ is very small ($\theta < .2$ radians), $\sin \theta \approx \theta$. Using the fact that $s = L \theta$, we can also write: $$F_\textrm{tang} = -\frac{mg}{L}{s}$$

This is essentially a restoring force, just like we had for the mass/spring system. $$F = -kx \;\;\Rightarrow \;\; F = -\frac{mg}{L}s$$

Other coordinates?

A slightly better coordinate to describe the motion of the pendulum might be $\theta$. That would be a slightly more general coordinate system.

\begin{equation} \ddot{\theta} + \frac{g}{l}\theta = 0 \end{equation}

Mathematical Asides

What does $$e^{i \theta}$$ have to oscillations?

Euler's Formula

\begin{equation} e^{i\theta} = \cos \theta + i \sin \theta \label{eq:eulersformula} \end{equation}

Derive Via Taylor's Series

The Taylor series for an exponential is: \begin{equation} e^z = 1 + z + \frac{z^2}{2!} + \frac{z^3}{3!} + \ldots \end{equation}

Replace the $z$ with $i\theta$ \begin{equation} e^{i\theta} = 1 + i\theta + \frac{(i\theta)^2}{2!} + \frac{(i\theta)^3}{3!} + \frac{(i\theta)^4}{4!} + \ldots \end{equation}

Group in terms of real/imaginary \begin{equation} e^{i\theta} = \left[ 1 - \frac{(i\theta)^2}{2!} + \frac{(i\theta)^4}{4!} + \ldots \right] + i \left[ \theta - \frac{(i\theta)^3}{3!} + \frac{(i\theta)^5}{5!}\right] \end{equation}

Now we can see that these are just the sine and cosine series: \begin{align} \sin(x) & = x - \frac{x^3}{3!}+ \frac{x^5}{5!} \\ \cos(x) & = 1 - \frac{x^2}{2!}+ \frac{x^4}{4!} \end{align}

Thus, we have: \begin{equation} e^{i\theta} = \cos \theta + i \sin \theta \end{equation}

Derive via complex numbers

A number: $$z = a + b y$$ on the complex plane.

This can also be expressed in polar coordinates: $$z = r \left( \cos{\theta} + i \sin{\theta}\right)$$

Any complex number can be expressed using the exponential: $$z = |r| e^{ix}$$

Now, we have $$e^{i x} = r \left( \cos{\theta} + i \sin{\theta}\right)$$ We need to figure out what $r$ and $x$ equal.

Start by taking the derivative of both sides w.r.t $x$ $$ \frac{d}{dx} e^{ix} = ie^{ix} $$ and $$ \frac{d}{dx} \left[ r \left( \cos{\theta} + i \sin{\theta}\right) \right] = \frac{dr}{dx}\left( \cos \theta + i \sin \theta \right)+ r(-\sin \theta + i \cos\theta)\frac{d\theta}{dx}$$ Thus: $$ ie^{ix} = \frac{dr}{dx}\left( \cos \theta + i \sin \theta \right)+ r(-\sin \theta + i \cos\theta)\frac{d\theta}{dx}$$ Comparing reals to reals and imaginary to imaginary: $$i r \cos \theta = \frac{dr}{dx} i \sin \theta + r i \cos \theta \frac{d\theta}{dx}$$ and $$-r \sin \theta = \frac{dr}{dx} \cos \theta - r \sin \theta \frac{d\theta}{dx}$$ we can surmise that: $$\frac{dr}{dx} = 0$$ and $$\frac{d\theta}{dx} = 1 \Rightarrow \theta = x + C $$ Since $e^{i 0} = 1$, we then also can say that $$r(0) = 1$$ and $$\theta(0) = 0$$ thus $r = 1$ and $C = 0$ and $\theta = x$ Which means that $$e^{i\theta} = 1 \times \left( \cos{\theta} + i \sin{\theta}\right)$$

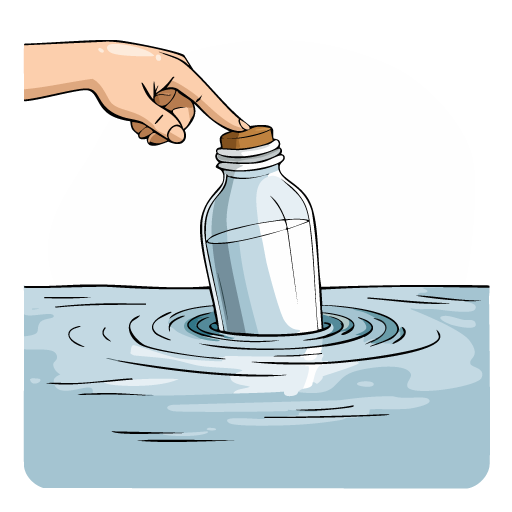

A bottle is floating in a lake. It's floating, so that the bottom of the bottle is submerged by an amount $d_0$. You press down so its distance below the surface is now $d_0 + y = d$ and it begins to bob (oscillate) up and down. Show why this is the expected motion. Find a relationship between the period of oscillations and $d_0$.

Problem →

If it's floating, the we can say it's in equilibrium: $$ F = ma = 0 = mg - \rho g A d_0 $$ where Archimedes principle (weight of the fluid displaced) gives the buoyancy force, which acts contrary to gravity. ($\rho$ is the density of water, and $A$ is the cross-sectional area of the bottle).

Now, if we submerge the bottle a bit by a depth $y$ from equilibrium, the 2nd law will be: $$ m \ddot{y} = mg - \rho g A (d_0 + y) $$

We know from the outset that $mg = \rho g A d_0$ so we can write: $$ \ddot{y} = -\rho g A y / m $$ This is a restoring force!

We can also say that $$ \frac{\rho g A}{m} = \frac{g}{d_0} $$ so the equation of motion cleans up to: $$ \ddot{y} = - \frac{g}{d_0}y $$ thus $$ \omega = \sqrt{g/d_0} $$ and the period: $$ T = \frac{2\pi}{\omega} = 2 \pi \sqrt{\frac{d_0}{g}} $$

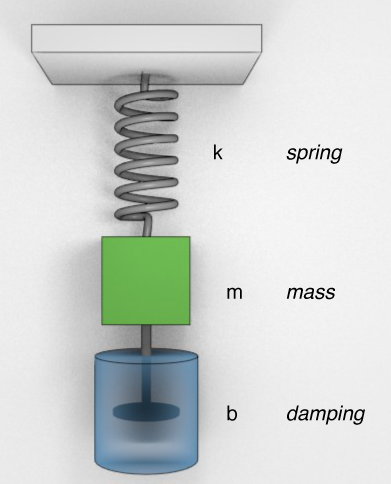

Damping

Let's add more terms!

$$F = m \ddot{x} = -kx - b \dot{x}$$

Clean it up:

\begin{equation} \ddot{x} + 2 \beta \dot{x} + w_0^2 x = 0 \label{eq:dampedoscillatoreqofmotion} \end{equation} where $\beta \equiv \frac{b}{2m}$ and $\omega_0 \equiv \sqrt{\frac{k}{m}}$

Note: $\omega_0$ is the natural frequency.

This is a second-order, linear, differential equation. It's solvable if we stipulate two initial conditions: $$x(0) = x_0$$ and $$v(0) = v_0$$

A general solution would look like: $$x \propto e^{\alpha t}$$

If we put this in for $x$, we would get: $$\frac{d^2}{dt^2}(e^{\alpha t}) + 2 \beta \frac{d}{dt}(e^{\alpha t}) + \omega_0^2 e^{\alpha t} = 0 $$ which would become, after taking the first and second derivatives of the exponentials: \begin{equation} \alpha^2 + 2 \beta \alpha + \omega_0^2 = 0 \end{equation} This is just a quadratic equation in $\alpha$ so we can write the solution to $\alpha$

\begin{equation} \alpha = -\beta \pm \sqrt{\beta^2 - \omega_0^2} \end{equation}

Thus, a general solution would consist of the two independent solutions: \begin{equation} x(t) = C_1 e^{\left( -\beta + \sqrt{\beta^2 - \omega_0^2 }\right) t} + C_2 e^{\left(-\beta - \sqrt{\beta^2 - \omega_0^2}\right) t} \end{equation} or

There are 3 possibilities now:

Overdamped: $\beta \gt \omega_0$
Critically Damped: $\beta = \omega_0$
Underdamped: $\beta \lt \omega_0$

(plus the $\beta = 0$ case.)

Overdamped

If $$\beta \gt \omega_0$$ then the exponent $\alpha$ in our solution $x = e^{\alpha t}$ will be negative and real.

This means we can write our general solution as the sum of two terms: $$x(t) = C_1 e^{\gamma_1 t}+ C_2 e^{\gamma_2 t}$$ Where $$ \begin{align} \gamma_1 & = -\beta + \sqrt{\beta^2 - \omega_0^2} \\ \gamma_2 & = -\beta - \sqrt{\beta^2 - \omega_0^2} \end{align} $$ The constants $C_1$ and $C_2$ will be determined by the initial conditions of the oscillator, i.e. $x(t = 0)$ and $\dot{x}(t = 0)$.

Overdamped oscillator

What if $x_0 = 0$ and $v_{0x} \neq 0$?

Dependence on $\beta$.

Here we are plotting the effects of $\beta$ on the motion for an overdamped oscillator. Note that by increasing $\beta$, the systems takes longer to settle back to equilibrium.

Critically Damped

If $$\beta = \omega_0$$ then solution becomes $x(t) = \left(C + C' t \right) e^{-\beta t}$

Critical Damping.

An example of critical damping with a non-zero initial velocity.

Underdamped

If $$\beta < \omega_0$$ then we see that $\sqrt{\beta^2 - \omega^2}$ will be imaginary.

The damped eq. of motion was \begin{equation} \ddot{x} + 2 \beta \dot{x} + w_0^2 x = 0 \end{equation} which was solved by: $$x \propto e^{\alpha t}$$ where \begin{equation} \alpha = -\beta \pm \sqrt{\beta^2 - \omega_0^2} \end{equation}

If $$\beta < \omega_0$$ then we see that $\sqrt{\beta^2 - \omega^2}$ will be imaginary.

Let's see how this affects our solution.

Noting that $$\sqrt{\beta^2 - \omega_0^2} = i \sqrt{\omega_0^2 - \beta^2}$$ we can recast the solution as: \begin{equation} x(t) = e^{-\beta t} \textrm{Re} \left(A_1 e^{i \omega_1 t} + A_2 e^{- i \omega_1 t}\right) \label{eq:dampedsolutionreals} \end{equation} with $$\omega_1 = \sqrt{\omega_0^2 - \beta^2}$$ (we only want the real part: $\textrm{Re}$)

We can use the Euler Formula to re-write \eqref{eq:dampedsolutionreals} as \begin{equation} x(t) = e^{-\beta t}\left(\bar{A}_1 \cos \omega_1 t + \bar{A}_2 \sin \omega_1 t \right) \label{eq:dampedsolutioncossin} \end{equation}

Using the trig identity: \begin{equation} \cos \left(\theta + \phi \right) = \cos \theta \cos \phi - \sin \theta \sin \phi \end{equation} \eqref{eq:dampedsolutioncossin} becomes: \begin{equation} x(t) = A e^{-\beta t} \cos \left(\omega_1 t - \phi \right) \label{eq:dampedsolutionphase} \end{equation} where $A = \sqrt{\bar{A}_1^2 + \bar{A}_2^2}$ and $\phi = \tan^{-1}\left(\frac{\bar{A}_2}{\bar{A}_1} \right)$

One thing to note is that the frequency of oscillation has now changed...

Three cases of damping.

Plotted here are the 3 different regimes of a damped oscillator. These all start with $v_0 = 0$ and $x_0 = 1$.

Damped and Driven

Let's add more terms, again!

$$F = m \ddot{x} = -kx - b \dot{x} + F_0 \sin \left(\omega t \right)$$

The driving force

Some aspects to note straight away. There are now 3 different frequencies involved in the system:

The natural frequency of the SHM: $\omega_0$
The damped frequency we just saw in the damping discussion: $\omega_1 = \sqrt{\omega_0^2- \beta^2 }$
The driving frequency $\omega$.

Also, this is a new type of differential equation. It's still linear and second order, but now it is inhomogeneous because of the because of the driving term on the right (i.e. there is a non-zero constant term like $\mathbf{c}$ in this example: $a f(x)'+ b f(x) + \mathbf{c} = 0$). This will involve a more complicated solution. The basic idea for the solution is that you need to find the sum of two solutions, one general solution for just the homogeneous part, and then a particular solution for the inhomogeneous part.

In our simple example, the general solution to the homogeneous part would be: $$ a f(x)' + b f(x) = 0$$ gives: $$f(x)_H = A e^{-\frac{b}{a}x}$$ Then we can look for a particular solution that includes the inhomogeneous component. Setting $x = - c/b$ is indeed a solution. The next step would be to define some initial conditions, eg, at $x = 0$, $f(0) = B$. So, $$f(0) = B = A - \frac{c}{b}$$ Then: $$f(x) = \left( B + \frac{c}{b} \right)e^{-\frac{b}{a}x} - \frac{c}{b}$$ which cleans up to: $$f(x) = B e^{-\frac{b}{a}x} + \frac{c}{b}\left(e^{-\frac{b}{a}x} - 1\right)$$

So, now we can solve this: $$m \ddot{x} + kx + b \dot{x} = F_0 \sin \left(\omega t \right)$$ We want our solution to be the sum of the characteristic and particular solutions: $$x(t) = x_c(t) + x_p(t)$$ that is, a general solution for the homogeneous part, and a particular solution for the inhomogeneous equation.

We've already found the general solution to the damped oscillator: $$x_c(t) = A e^{-\beta t} \cos \left(\omega_1 t - \phi_0 \right)$$ We'll skip the details of the solution (as they are readily available elsewhere), and simply state the $x_p(t)$ solution as: $$x_p(t) = C \sin \left(\omega t + \delta \right)$$ Together they become: \begin{equation} x(t) = A e^{-\beta t} \cos \left(\omega_1 t - \phi_0 \right) + C \sin \left(\omega t - \delta \right) \label{eq:dampeddrivensolution} \end{equation}

The coefficient $C$ can be found to be: \begin{equation} C = \frac{f_0}{\sqrt{\left(\omega_0^2 - \omega^2 \right)^2 + 4 \beta^2 \omega^2}} \end{equation} This characterizes the amplitude of the steady state solution.

The new parameter in \eqref{eq:dampeddrivensolution} is $\delta$. The physical interpretation of this $\delta$ is as follows. We know it functions as a phase constant, meaning it will shift the position of the $\sin$ contribution be some factor. It can be shown to be equal to: $$\tan \delta = \frac{2 \beta \omega}{\omega_0^2-\omega^2}$$

The response of the damed-driven oscillator (bottom) is shown to be the sum of the transient term (top) and the steady state (middle) components.

It's helpful to imagine the combination of the two terms in a graphical form.

Resonance

Response of the steady-state component due to changing the drive frequency.

Here we see the change in the $C$ value as a function of drive frequency (in relation to resonant frequency: $\frac{\omega}{\omega_0}$).

Maximize $C(\omega)$ to find the driving frequency $\omega$ that will lead to the largest response.

$$ C = \frac{f_0}{\sqrt{\left(\omega_0^2 - \omega^2 \right)^2 + 4 \beta^2 \omega^2}} $$

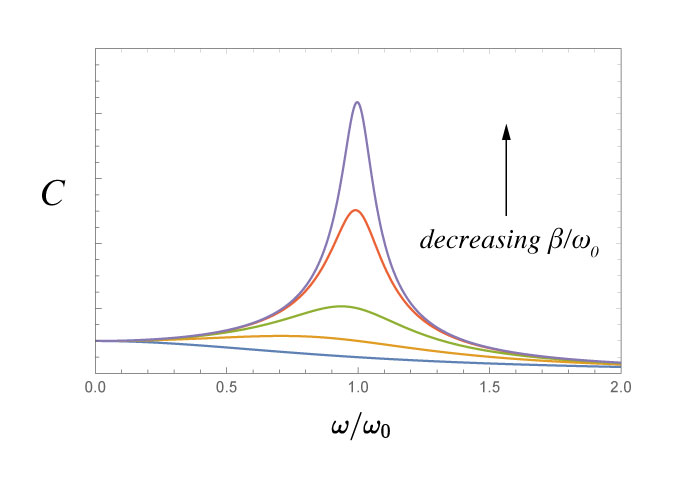

If we decrease the damping (and keep $\omega_0$ constant), we can see the peak of the resonance increasing.

This graph shows 5 different damped driven oscillators. The differences in each curve is the ratio of the damping constant to the resonant frequency. Notice the change in shape.

Quality Factor

The Full Width Half Max measures describes the shape of the curve.

The Quality Factor is the ratio of the resonant frequency, $\omega_0$, and the damping $\beta$.

\begin{equation} Q = \frac{\omega_0}{2 \beta} \end{equation}
