Calculus of Variations

Origins

Snell's Law

Waves at an interface

If one treats light as a wave-like phenomena, then Snell's law is readily derivable from geometry.

But, back in 1600's the nature of light (i.e. particle or wave) was anything but settled.

Principle of Least Time

Light traveling between a and b. How does it know which way to go?

Q: How does a photon (i.e. not a wave) decide to change directions upon entering and exiting the medium?

A: It has to get to point b in the shortest time.

Since the distance $s$ traveled in time $t$ at a speed $v$ is \begin{equation} v = \frac{s}{t} \end{equation} and using the fact that the speed of light depends on the local index of refraction: \begin{equation} v_\textrm{light} = \frac{c}{n(\mathbf{r})} \end{equation} we can express the time to travel an infinitesimal distance $ds$ as : \begin{equation} dt = \frac{ds}{v} = \frac{ds}{c/n(\mathbf{r})} \end{equation}

Integrating this to find the total time it takes: \begin{equation} t = \int dt = \frac{1}{c}\int n(\mathbf{r}) ds \end{equation}

Finding the path ($ds$) that minimizes the total time is essentially the Principle of Least Time, though it would take a few more hundred years to figure out how to really do this math. (and even longer to figure out why it should even be true)

Assuming the index of refraction in our material $n(\mathbf{r})$ only changes with respect to the x position, we could write: \begin{equation} t = \frac{1}{c}\int ds \; n(x) \end{equation} or, using i.47 \begin{equation} t = \frac{1}{c} \int n(x) \sqrt{dx^2 + dy^2} = \frac{1}{c} \int n \left(x \right) \sqrt{1 + \left( \frac{dy}{dx} \right)^2} dx \end{equation} which, using the shorthand for $dy/dx = y'$ (in general, a prime will mean take the derivative w.r.t whatever the explicit independent variable is), \begin{equation} t = \frac{1}{c}\int n(x) \sqrt{1+y'^2} dx \end{equation}

Lastly, the index of refraction should not be limited to just x dependent changes: $n(x,y)$ is more general. \begin{equation} t = \frac{1}{c}\int n(x,y) \sqrt{1+y'^2} dx = \int F(x,y(x),y'(x))dx \end{equation} Now, the function $F$ can be seen to depend on $x$, $y(x)$, and $y'(x)$. The techniques that follow will seek to find the path $y(x)$ that minimizes this integral.

Getting even more general, if: \begin{equation} I = \int F(x,y(x),y'(x))dx \end{equation} Can we find paths $y(x)$ that also maximize $I$? Or, even find what we'll call a stationary path, where the value of $I$ is nearly independent of small changes in the path?

Review of Mins/Max/Saddles

The Minimums and Maximums of a 1d function.

The mins & maxes of a function are just the zero-crossings of the first derivative.

A saddle point in 1d

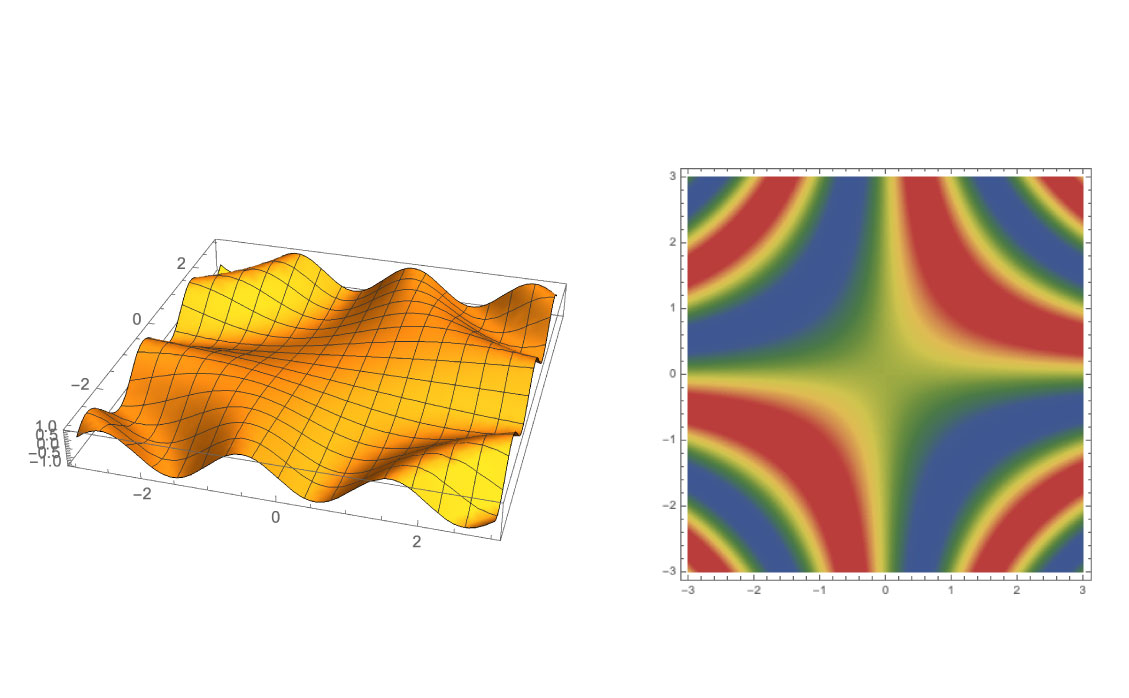

Saddle points can also exist.

Functions of Two Variables

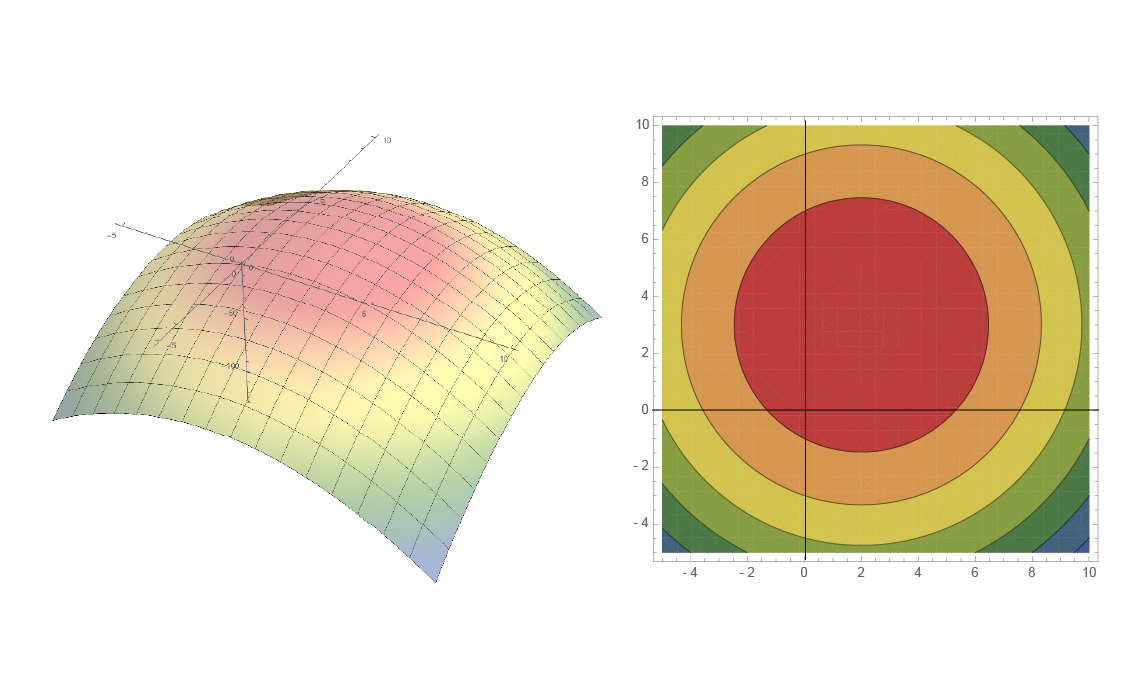

Create this plot:


    a = 1;
    x0 = 2; y0 = 3;
    paraboloid [x_, y_] := -a ((x - x0)^2 + (y - y0)^2)
    Plot3D[paraboloid[x, y], {x, -5, 10}, {y, -5, 10}, Boxed -> False,
     AxesOrigin -> {0, 0, 0}, PlotStyle -> Opacity[0.5],
     ColorFunction -> "DarkRainbow"]
    ContourPlot[paraboloid[x, y], {x, -5, 10}, {y, -5, 10}, Frame -> True,
      AxesOrigin -> {0, 0, 0}, ColorFunction -> "DarkRainbow"]

Find the max of this inverted paraboloid

\begin{equation} f(x,y) = -a \left( (x-x_0)^2 + (y-y_0)^2 \right) \end{equation}

Set both partials equal to zero: $$ \frac{\partial f}{\partial x} = -2a(x-x_0) = 0 \;\;,\;\;\frac{\partial f}{\partial y} = -2a(y-y_0) = 0 $$

Or,


Solve[D[paraboloid[x, y] == 0, x], x]
Solve[D[paraboloid[x, y] == 0, y], y]


      a = 1;
      x0 = 2; y0 = 3;
      paraboloid [x_, y_] := -a ((x - x0)^2 + (y - y0)^2)
      Maximize[paraboloid[x, y], {x, y}]
      Show[ContourPlot[paraboloid[x, y], {x, -5, 10}, {y, -5, 10},
        Frame -> True, AxesOrigin -> {0, 0, 0},
        ColorFunction -> "DarkRainbow", GridLines -> Automatic],

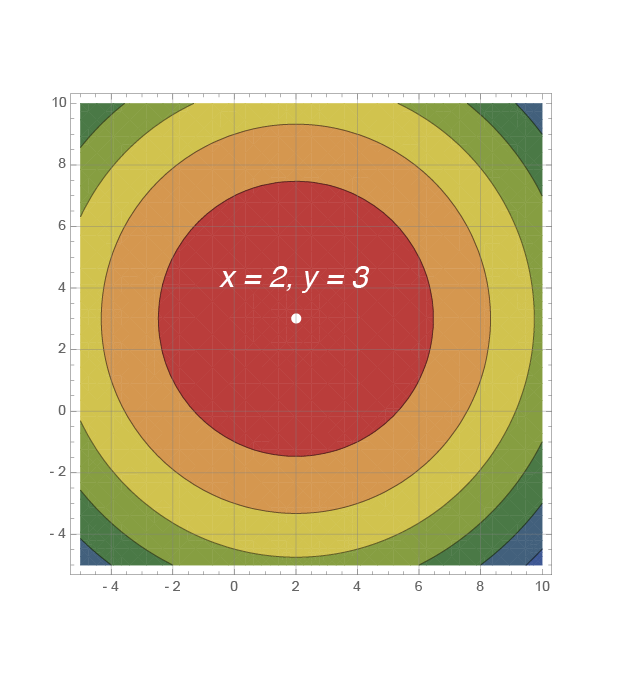

       Graphics[{White, PointSize[Large], Point[{x, y} /. Last[%]]}]]

The path length for all the different paths from $a$ to $b$ can be considered a function.

The function is now what we want to find stationary points for.

Examples

\begin{equation} \frac{\partial F}{\partial y(x)}-\frac{d}{dx}\left(\frac{\partial F}{\partial y'(x)}\right)=0 \label{eq:eulerlagrange} \end{equation}

Show that the shortest distance between 2 points is a straight line

Shortest Distance →

\begin{equation} s = \int ds = \sqrt{dx^2 + dy^2} = \int_{x_a}^{x_b} \sqrt{1 + \left(\frac{dy}{dx} \right)^2} dx \end{equation} or, more simply: \begin{equation} s = \int_{x_a}^{x_b} \sqrt{1+ y'^2} dx \end{equation}

Thus, our $F$ is: \begin{equation} F = \sqrt{1+y'^2} \end{equation} Since $$ \frac{\partial F}{d y} = 0 $$, we can use \ref{eq:eulerlagrange} to say that: \begin{equation} \frac{d}{dx}\left(\frac{\partial F}{dy'} \right) = 0 \end{equation} which means that \begin{equation} \frac{\partial F}{\partial y'} = \textrm{A constant} = k \end{equation} Next: \begin{equation} \frac{\partial F}{\partial y'} = \frac{y'}{\sqrt{1+y'^2}} = k \end{equation}

Solve for $y'$ \begin{equation} y' = \frac{\pm k}{\sqrt{1-k^2}} \equiv m_1 \end{equation}

Now, integrate $dy/dx$: \begin{equation} dy = \int m_1 dx = m_1 x + m_2 \end{equation}

Find the shape of a ramp that will bring a sliding mass to a lower point the fastest.

fastest →

The geometry of the brachistochrone problem.

The travel time for a small distance $ds$ at a (varying) speed $v$ is: \begin{equation} t = \int \frac{ds}{v} \end{equation} \begin{equation} ds = \sqrt{dx^2 + dy^2} \end{equation} Using conservation of energy, \begin{equation} E = \frac{1}{2}mv^2 + mg(-y) = 0 \end{equation} Thus, filling out our $t$: \begin{equation} t = \int \frac{\sqrt{1+y'^2}}{\sqrt{2gy}}dx \end{equation}

We can also switch to $x'$ and write: \begin{equation} t = \int \frac{\sqrt{1+x'^2}}{\sqrt{2gy}}dy \end{equation} and use: \begin{equation} \frac{\partial F}{\partial x}-\frac{d}{dy}\frac{\partial F}{\partial x'}=0 \end{equation} which will make Euler-Lagrange easier to solve, since the $\partial F /\partial x$ will vanish.

Thus: \begin{equation} \frac{\partial F}{\partial x'}=\frac{1}{\sqrt{2gy}}\frac{x'}{\sqrt{1+x'^2}}=k \end{equation} Solving for $x'$ \begin{equation} x' = \frac{\pm k \sqrt{2gy}}{\sqrt{1-2k^2 g y }} \equiv \sqrt{\frac{y}{a-y}} \end{equation}

Let $a = 1/(2k^2 g)$ and integrate: \begin{equation} x = \int dx = \int dy \sqrt{\frac{y}{a-y}} \end{equation}

Solving using substitution of \begin{equation} y = a \sin^2 \left(\frac{\theta}{2} \right) = \frac{a}{2}\left(1-\cos \theta \right) \end{equation} we can obtain \begin{align} x & = \frac{a}{2}(\theta - \sin \theta)\\ y & = \frac{a}{2}(1 - \cos \theta)\\ \end{align}

Euler-Lagrange Equation

\begin{equation} \frac{\partial F}{\partial y(x)}-\frac{d}{dx}\left(\frac{\partial F}{\partial y'(x)}\right)=0 \end{equation}

\begin{equation} I = \int_{x_a}^{x_b} F \left[ y(x), y'(x), x \right] dx \end{equation}

The right path minimizes the integral. The wrong path does not.

Imagine a wrong curve, shown in the dotted red line.

We can call it \begin{equation} Y(x) = y(x) + \eta(x) \end{equation}

Introduce a parameter $\alpha$: \begin{equation} Y(x) = y(x) + \alpha \eta(x) \label{eq:wrongpathwithparameter} \end{equation}

Now show that \begin{equation} \frac{dI}{d\alpha} = 0 \; \textrm{for} \; \alpha = 0 \label{eq:samestartendpoints} \end{equation}

The integral $I(\alpha)$ becomes, when written out: \begin{equation} I(\alpha) = \int_{x_a}^{x_b} F(Y, Y', x) dx \end{equation} or \begin{equation} I(\alpha) = \int_{x_a}^{x_b} F(y+\alpha \eta,\; y'+\alpha \eta',\; x)\; dx \end{equation}

Now we evaluate $\frac{\partial F}{\partial \alpha}$

Thus, $dI/d\alpha$: \begin{equation} \frac{\partial I}{\partial \alpha} = \int_{x_a}^{x_b} \frac{\partial F}{\partial \alpha} dx = \int_{x_a}^{x_b} \left( \eta \frac{\partial F}{\partial y} + \eta' \frac{\partial F}{\partial y'} \right)dx= 0 \end{equation}

Integration by Parts

\begin{equation} \int_{x_a}^{x_b} \eta' \frac{\partial F}{\partial y'} dx = \left[ \frac{\partial F}{\partial y'} \eta(x)\right]_{x_a}^{x_b} - \int_{x_a}^{x_b} \frac{d}{dx} \left(\frac{\partial F}{\partial y'} \right)\eta(x) dx \label{eq:byparts} \end{equation}

\begin{equation} \frac{\partial F}{\partial y} - \frac{d}{dx} \frac{\partial F}{\partial y'} = 0 \end{equation}

Fundamental Lemma of Calculus of Variations:

if \begin{equation} \int \eta(x)g(x) dx = 0 \end{equation} then it can be shown that $g(x)$ must be zero.

If $I$ is an extremum: \begin{equation} I = \int_{x_a}^{x_b} F \left[ y(x), y'(x), x \right] dx \end{equation} then \begin{equation} \frac{\partial F}{\partial y} - \frac{d}{dx} \frac{\partial F}{\partial y'} = 0 \end{equation}

How will we use this? \begin{equation} I = \int \left(\frac{1}{2}m v^2 - U \right) dt = \int \left(T - U \right) dt \end{equation} where \begin{equation} T = \frac{1}{2}mv^2 \end{equation} and (for gravity for example) \begin{equation} U = mgy \end{equation}
